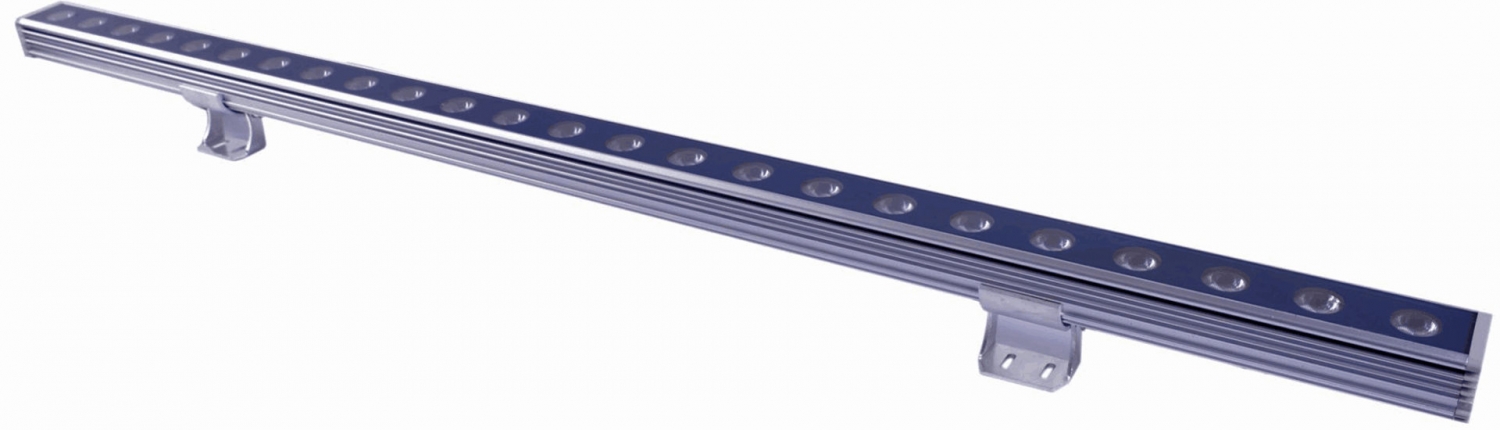

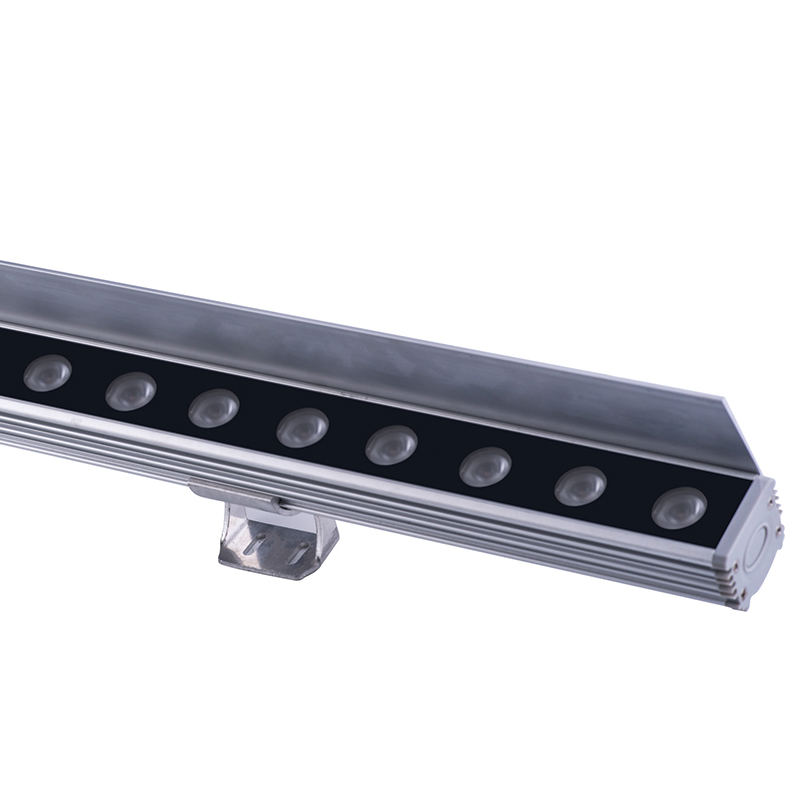

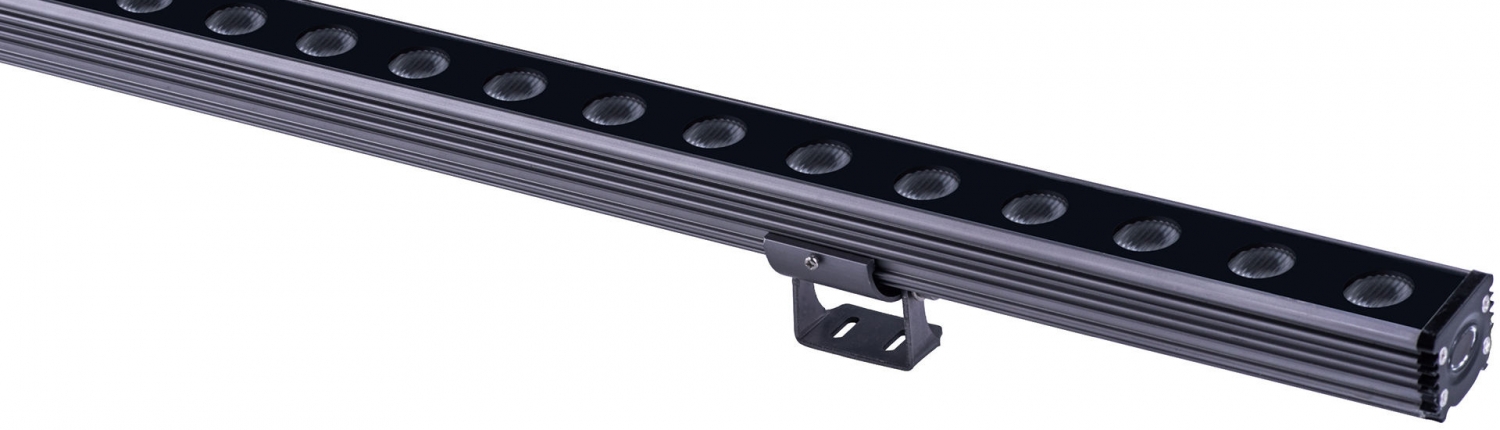

LED WALL WASHER MULTI COLOR

The newest generation technology: DMX512 parallel bus design.
Clip on-off style connection and anti- pull connection without connector design.
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue.
Outdoor lighting protection and electrostatic discharge (ESD) protection design.
Aluminum alloy lamp body with low thermal resistance path heat dissipation design.

SPECIFICATION OPTICAL PARAMETERS

LED brand:  CREE / OSRAM / Epistar
Color:   RGB  /  W(2700K-6000K) / RGBW
Beam Angle:  10°/15°/  30°/  45°/  60°
Source life:   50,000H

ELECTRICAL PARAMETERS

Input :  DC 24V
Rated power:  24W  /  36W /  48W

CONTROL PARAMETERS

Control Method : DMX512 /  SPI  / ON-OFF
Gray scale: 8bit / 12bit / 16bit
Control system : CM controllers and system / Third party standard DMX control system

STRUCTURAL PARAMETERS

Base material : High strength aluminum alloy + Tempered glass
Surface color : Aluminum color / Dark gray optional / custom color
weight : 2.85g
Size : 1000X46X72.9mm

ENVIRONMENTAL PARAMETERS

Working Temperature:  : -25°to  50°
Storage Temperature:   : -40°to  70°
Protection rate:        : IP66
Application environment: Outdoor / Indoor
