Good shock resistance and shock resistance; Security and stability
Good environmental performance; The brightness is adjustable

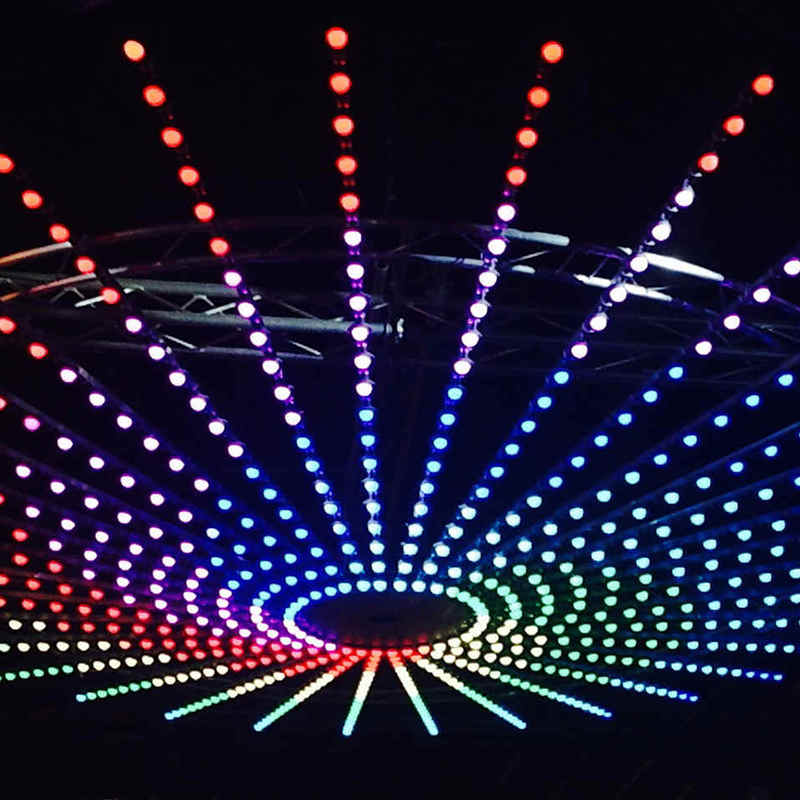

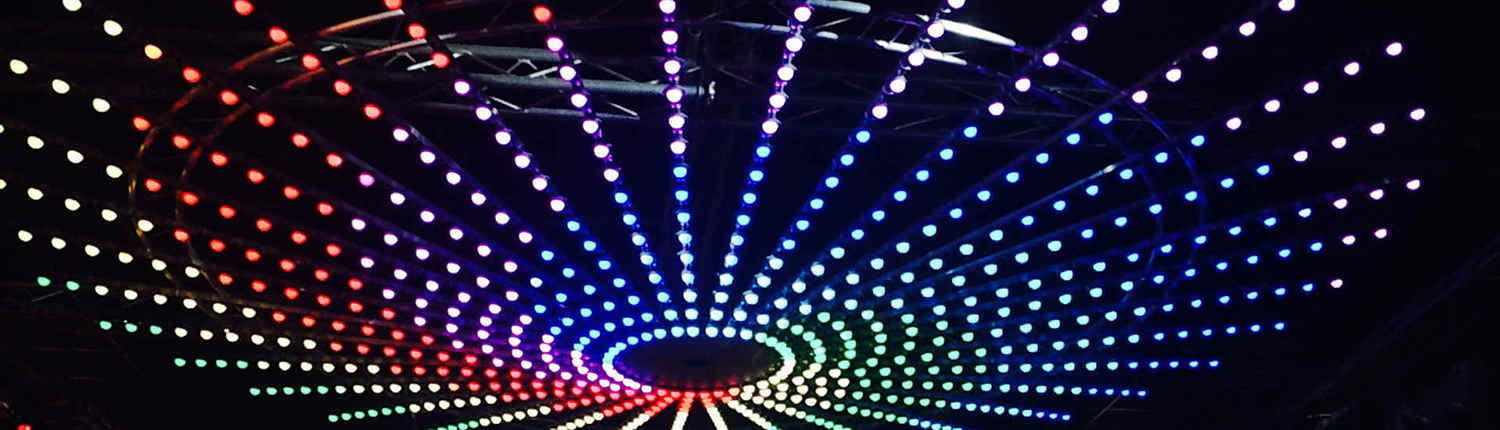

Widely used in the signboard advertising logo, the hotel house logo, the city landmark lighting, etc.
The newest generation technology: DMX512 parallel bus design.
Clip on-off style connection and anti-pull connection without connector design.
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue.
Outdoor lighting protection and electrostatic discharge (ESD) protection design.
Flexible design ensures 4 kinds of mounting ways.

SPECIFICATION OPTICAL PARAMETERS
LED brand: CREE / OSRAM / Epistar
Color: RGB / W(2700K-6000K)
Light source: 1 X 3535SMD / 2 X 3535SMD
Beam Angle: 110°
Source life: 50,000H

ELECTRICAL PARAMETERS
Input : DC5V / DC 12V
Rated power: 0.3W / 0.6W

CONTROL PARAMETERS
Control Method : DMX512 / SPI / ON-OFF
Gray scale: 8bit / 12bit / 16bit
Control system: CM controllers and system / Third party standard DMX control system

STRUCTURAL PARAMETERS
Base material: flame-retardant and weatherproof engineering plastic + PC cover
Surface color: Black / Greyish white
Weight: 11g
Size : 25X22X14mm

ENVIRONMENTAL PARAMETERS
Working Temperature: : -25°to 50°
Storage Temperature: : -40°to 70°
Protection rate : IP66
Application environment: Outdoor / Indoor
